CA-IS2062A

Isolated CAN Transceivers

CA-IS2062A Features

* Meet the ISO 11898-2:2016 Physical Layer Standard

* Support Classic CAN up to 1Mbps and CAN FD (Flexible Data Rate) up to 5Mbps

* Integrate DC-DC Converter to Generate 5V Isolated Power Supply for the Bus Side

* Integrated Protection Functions to Support Reliable Da

CA-IS2062A General Description

The CA-IS2062A is a galvanically-isolated CAN transceiver with a built-in isolated DC-DC converter, which eliminates the need of an external isolated power supply to save the system space and simplify the design. The internal logic input and output buffer are separated by a silicon oxide (SiO2) insu.

CA-IS2062A Datasheet (1.16 MB)

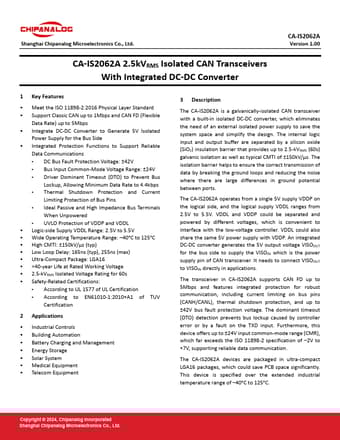

Preview of CA-IS2062A PDF

Datasheet Details

Part number:

CA-IS2062A

Manufacturer:

Chipanalog

File Size:

1.16 MB

Description:

Isolated can transceivers.
Shanghai Chipanalog Microelectronics Co., Ltd. CA-IS2062A Version 1.00 CA-IS2062A 2.5kVRMS Isolated CAN Transceivers With Integrated DC-DC Converter.
