CA-IS2062W

Isolated CAN Transceivers

CA-IS2062W Features

* Meets the ISO 11898-2 physical layer standards

* Integrated DC-DC converter for cable-side power

* Integrated protection increases robustness

* 3.75kVRMS withstand isolation voltage for 60s (galvanic isolation)

* ±150kV/μs typical CMTI

* ±58V fault-tolerant CANH

CA-IS2062W General Description

The CA-IS2062 is galvanically-isolated CAN transceivers with a built-in isolated DC-DC converter, that eliminates the need for a separate isolated power supply in space constrained isolated designs. It has the logic input and Copyright © 2020, Chipanalog Incorporated Shanghai Chipanalog Microelectro.

CA-IS2062W Datasheet (1.03 MB)

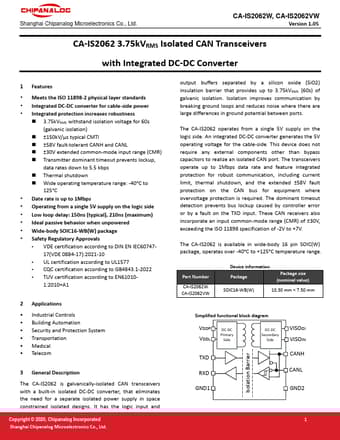

Preview of CA-IS2062W PDF

Datasheet Details

Part number:

CA-IS2062W

Manufacturer:

Chipanalog

File Size:

1.03 MB

Description:

Isolated can transceivers.
Shanghai Chipanalog Microelectronics Co., Ltd. CA-IS2062W, CA-IS2062VW Version 1.05 CA-IS2062 3.75kVRMS Isolated CAN Transceivers with Integrated DC.
