CA-IS2092A Datasheet - Chipanalog

Isolated RS-485 Transceivers

CA-IS2092A Features

* High-Performance and Compliant with RS-485 EIA/TIA-485 Standard

* Data rate is up to 0.5Mbps

* 1/8 unit load enables up to 256 nodes on the bus

* 3.0V to 5.5V DC-DC supply voltage range(VDDP)

* 2.5V to 5.5V RS-485 supply input(VDDL)

* Integrated DC-DC Converter for

CA-IS2092A General Description

The CA-IS2092A family of devices is galvanically-isolated RS-485 transceivers with built-in isolated DC-DC converter, that eliminates the need for a separate isolated power supply in space constrained isolated designs. The transceivers have the logic input and output buffers separated by a silicon o.

CA-IS2092A Datasheet (1.32 MB)

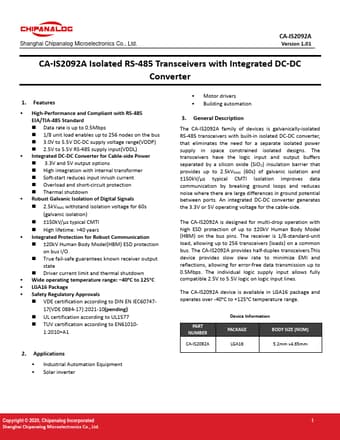

CA-IS2092A Datasheet Preview — Preview of CA-IS2092A PDF

Datasheet Details

Part number:

CA-IS2092A

Manufacturer:

Chipanalog

File Size:

1.32 MB

Description:

Isolated rs-485 transceivers.
Shanghai Chipanalog Microelectronics Co., Ltd. CA-IS2092A Version 1.01 CA-IS2092A Isolated RS-485 Transceivers with Integrated DC-DC Converter 1. F.
