CA-IS2092VW

Isolated RS-485/RS-422 Transceivers

CA-IS2092VW Features

* High-Performance and Compliant with RS-485 EIA/TIA-485 Standard ▪ 0.5Mbps data rate ▪ 1/8 unit load enables up to 256 nodes on the bus ▪ 3V to 5.5V supply voltage range, and the CAIS2092VW provides individual logic supply input

* Integrated DC-DC Converter for Cable-side Power ▪ 3.

CA-IS2092VW General Description

The CA-IS2092x family of devices is galvanically-isolated RS-485/RS-422 transceivers with built-in isolated DC-DC converter, that eliminates the need for a separate isolated power supply in space constrained isolated designs. All devices of this family have the logic input and output buffers separat.

CA-IS2092VW Datasheet (1.53 MB)

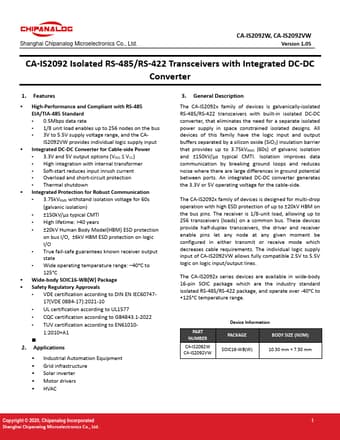

Preview of CA-IS2092VW PDF

Datasheet Details

Part number:

CA-IS2092VW

Manufacturer:

Chipanalog

File Size:

1.53 MB

Description:

Isolated rs-485/rs-422 transceivers.
Shanghai Chipanalog Microelectronics Co., Ltd. CA-IS2092W, CA-IS2092VW Version 1.05 CA-IS2092 Isolated RS-485/RS-422 Transceivers with Integrated DC.
