CA-IS3215-Q1

Reinforced Isolated SiC/IGBT Gate Driver

CA-IS3215-Q1 Features

* 15A Peak Sink Current and 15A Peak Source Current

* OUTH and OUTL Split Outputs

* Drive High-power SiC MOSFET and IGBT with up to 2121 VPK Operating Voltage

* Up to 33V Output Drive Supply Range(VDD-VEE) with 12V VDD UVLO Detection and Power-Good Indication RDY

CA-IS3215-Q1 General Description

The CA-IS3215/6 devices are a family of single-channel reinforced isolated gate driver capable of sinking 15A and sourcing 15A peak-current. These devices operate with dual supplies or a single supply of up to 33V wide voltage range of VDD - VEE, making them ideal to drive high-power MOSFET, IGBT or.

CA-IS3215-Q1 Datasheet (1.75 MB)

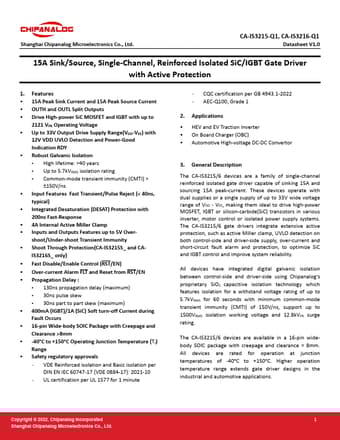

Preview of CA-IS3215-Q1 PDF

Datasheet Details

Part number:

CA-IS3215-Q1

Manufacturer:

Chipanalog

File Size:

1.75 MB

Description:

Reinforced isolated sic/igbt gate driver.
Shanghai Chipanalog Microelectronics Co., Ltd. CA-IS3215-Q1, CA-IS3216-Q1 Datasheet V1.0 15A Sink/Source, Single-Channel, Reinforced Isolated SiC/IG.
