CA-IS3221, Dual-Channel Gate Driver

Shanghai Chipanalog Microelectronics Co., Ltd.CA-IS3221, CA-IS3222 Version 1.04 6A Sink/5A Source, 5.7kVRMS Isolated Dual-Channel Gate Driver 1.F.
The CA-IS322x devices are a family of dual-channel isolated gate drivers capable of sinking 6A and sourcing 5A peak currents.

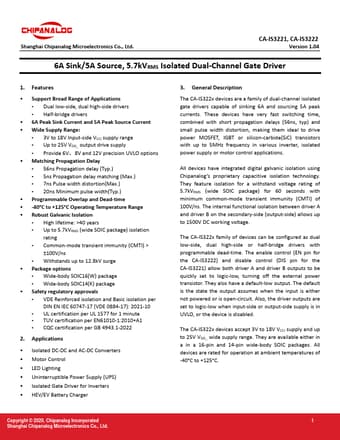

datasheet Preview Page 1 from Datasheet4u.com

CA-IS3221-Chipanalog.pdf

CA-IS3221 Datasheet Preview — Preview of CA-IS3221 PDF

Datasheet Details

Part number:

CA-IS3221

Manufacturer:

Chipanalog

File Size:

1.53 MB

Description:

Dual-Channel Gate Driver

Applications

* ▪ Dual low-side, dual high-side drivers ▪ Half-bridge drivers
* 6A Peak Sink Current and 5A Peak Source Current
* Wide Supply Range: ▪ 3V to 18V Input-side VCCI supply range ▪ Up to 25V VDD_ output drive supply ▪ Provide 6V、8V and 12V precision UVLO options
* Matching Propaga
