CA-IS3222-Q1, CA-IS3221-Q1 Datasheet - Chipanalog

CA-IS3222-Q1 Dual-Channel Gate Driver

The CA-IS322x devices are a family of dual-channel isolated gate drivers capable of sinking 6A and sourcing 5A peak currents. These devices have very fast switching time, combined with short propagation delays (56ns, typ) and small pulse width distortion, making them ideal to drive power MOSFET, IGB.

CA-IS3222-Q1 Features

* Support Broad Range of Applications ▪ Dual low-side, dual high-side drivers ▪ Half-bridge drivers

* 6A Peak Sink Current and 5A Peak Source Current

* Wide Supply Range: ▪ 3V to 18V Input-side VCCI supply range ▪ Up to 25V VDD_ output drive supply ▪ Provide6V、8V and 12V prec

CA-IS3221-Q1-Chipanalog.pdf

This datasheet PDF includes multiple part numbers: CA-IS3222-Q1, CA-IS3221-Q1. Please refer to the document for exact specifications by model.

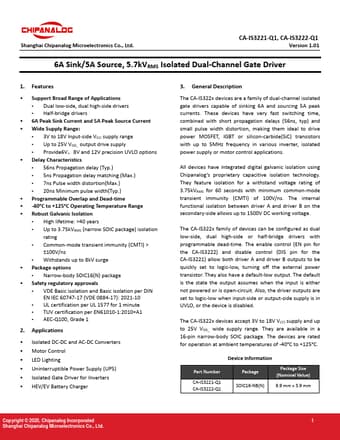

CA-IS3222-Q1 Datasheet Preview Page 2 CA-IS3222-Q1 Datasheet Preview Page 3

Datasheet Details

Part number:

CA-IS3222-Q1, CA-IS3221-Q1

Manufacturer:

Chipanalog

File Size:

1.43 MB

Description:

Dual-channel gate driver.

Note:

This datasheet PDF includes multiple part numbers: CA-IS3222-Q1, CA-IS3221-Q1.
Please refer to the document for exact specifications by model.
