CA-IS3222

Dual-Channel Gate Driver

CA-IS3222 Features

* Support Broad Range of Applications ▪ Dual low-side, dual high-side drivers ▪ Half-bridge drivers

* 6A Peak Sink Current and 5A Peak Source Current

* Wide Supply Range: ▪ 3V to 18V Input-side VCCI supply range ▪ Up to 25V VDD_ output drive supply ▪ Provide 6V、8V and 12V pre

CA-IS3222 General Description

The CA-IS322x devices are a family of dual-channel isolated gate drivers capable of sinking 6A and sourcing 5A peak currents. These devices have very fast switching time, combined with short propagation delays (56ns, typ) and small pulse width distortion, making them ideal to drive power MOSFET, IGB.

CA-IS3222 Datasheet (1.53 MB)

Preview of CA-IS3222 PDF

Datasheet Details

Part number:

CA-IS3222

Manufacturer:

Chipanalog

File Size:

1.53 MB

Description:

Dual-channel gate driver.
Shanghai Chipanalog Microelectronics Co., Ltd. CA-IS3221, CA-IS3222 Version 1.04 6A Sink/5A Source, 5.7kVRMS Isolated Dual-Channel Gate Driver 1. F.

📁 Related Datasheet

CA-IS3221 Dual-Channel Gate Driver (Chipanalog)

CA-IS3221-Q1 Dual-Channel Gate Driver (Chipanalog)

CA-IS3222-Q1 Dual-Channel Gate Driver (Chipanalog)

CA-IS3211 Opto-Compatible Single-Channel Isolated Gate Driver (Chipanalog)

CA-IS3213 Reinforced Isolated SiC/IGBT Gate Driver (Chipanalog)

CA-IS3215-Q1 Reinforced Isolated SiC/IGBT Gate Driver (Chipanalog)

CA-IS3216-Q1 Reinforced Isolated SiC/IGBT Gate Driver (Chipanalog)

CA-IS3020 Low-Power Bidirectional I2C Isolators (Chipanalog)

CA-IS3021 Low-Power Bidirectional I2C Isolators (Chipanalog)

CA-IS3050CG CAN Transceivers (Chipanalog)

TAGS

CA-IS3222 Dual-Channel Gate Driver Chipanalog

Image Gallery

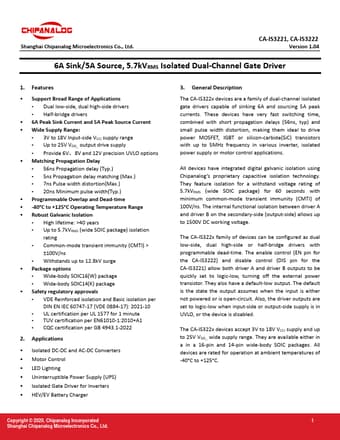

CA-IS3222 Datasheet Preview Page 2 CA-IS3222 Datasheet Preview Page 3
