CA-IS3216-Q1, CA-IS3215-Q1 Datasheet - Chipanalog

CA-IS3216-Q1 Reinforced Isolated SiC/IGBT Gate Driver

The CA-IS3215/6 devices are a family of single-channel reinforced isolated gate driver capable of sinking 15A and sourcing 15A peak-current. These devices operate with dual supplies or a single supply of up to 33V wide voltage range of VDD - VEE, making them ideal to drive high-power MOSFET, IGBT or.

CA-IS3216-Q1 Features

* 15A Peak Sink Current and 15A Peak Source Current

* OUTH and OUTL Split Outputs

* Drive High-power SiC MOSFET and IGBT with up to 2121 VPK Operating Voltage

* Up to 33V Output Drive Supply Range(VDD-VEE) with 12V VDD UVLO Detection and Power-Good Indication RDY

CA-IS3215-Q1-Chipanalog.pdf

This datasheet PDF includes multiple part numbers: CA-IS3216-Q1, CA-IS3215-Q1. Please refer to the document for exact specifications by model.

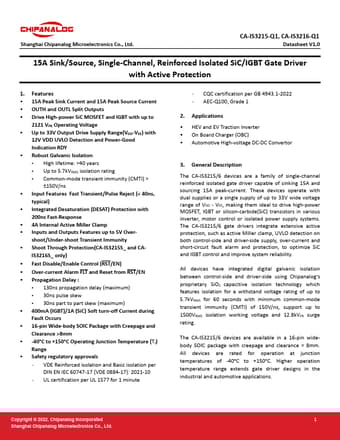

CA-IS3216-Q1 Datasheet Preview Page 2 CA-IS3216-Q1 Datasheet Preview Page 3
