CS3001

PRECISION LOW VOLTAGE AMPLIFIER

Cirrus Logic

CS3001 Features

* Low Offset: 10 µV Max Low Drift: 0.05 µV/°C Max Low Noise

* 6 nV/√Hz @ 0.5 Hz

* 0.1 to 10 Hz = 125 nVp-p

* 1/f corner @ 0.08 Hz Open-Loop Voltage Gain

* 300 dB Typical

* 200 dB Minimum Rail-to-Rail Output Swing Slew rate: 5 V/µs Applications Thermocouple/Therm

CS3001 General Description

The CS3001 single amplifier and the CS3002 dual amplifier are designed for precision amplification of low level signals and are ideally suited to applications that require very high closed loop gains. These amplifiers achieve excellent offset stability, super high open loop gain, and low noise over .

CS3001 Datasheet (203.66 KB)

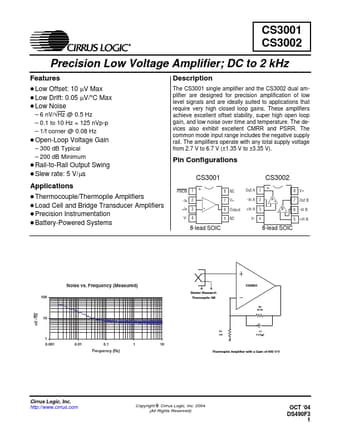

CS3001 Datasheet Preview — Preview of CS3001 PDF

Datasheet Details

Part number:

CS3001

Manufacturer:

Cirrus Logic

File Size:

203.66 KB

Description:

Precision low voltage amplifier.
