CS300N04A0 Datasheet, Mosfet, CR Micro

CS300N04A0 Features

• Mosfet l Fast Switching l Low ON Resistance(Rdson≤2.0 mΩ) l Low Gate Charge l Low Reverse transfer capacitances l 100% Single Pulse avalanche energy Test Applications： l BLDC Motor drive ap

PDF File Details

Part number:

CS300N04A0

Manufacturer:

CR Micro

File Size:

502.65kb

Download:

📄 Datasheet

Description:

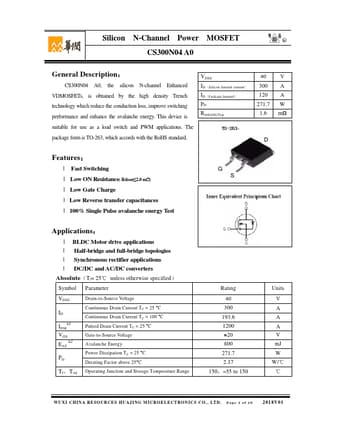

Silicon n-channel power mosfet. CS300N04 A0, the silicon N-channel Enhanced VDMOSFETs, is obtained by the high density Trench technology which reduce the conduction

CS300N04A0 Application

• Applications The package form is TO-263, which accords with the RoHS standard. 40 V 300 A 120 A 271.7 W 1.6 mΩ Features： l Fast Switching l Low
