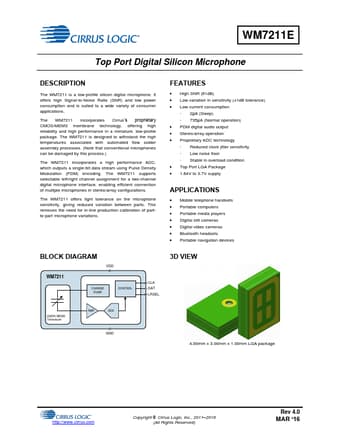

WM7211E Datasheet Preview — Preview of WM7211E PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	WM7211E
Manufacturer	Cirrus Logic
File Size	693.26 KB
Description	Top Port Digital Silicon Microphone
Datasheet	WM7211E-CirrusLogic.pdf

WM7211E Product details

Description

The WM7211 is a low-profile silicon digital microphone.

Features

High SNR (61dB).
Low variation in sensitivity (±1dB tolerance).
Low current consumption - 2μA (Sleep) - 735μA (Normal operation).
PDM digital audio output.
Stereo/array operation.
Proprietary ADC technology - Reduced clock jitter sensitivity - Low noise floor - Stable in overload condition.
Top Port LGA Package.
1.64V to 3.7V supply.
