WM7132PE Datasheet - Cirrus Logic

Bottom Port Analog Silicon Microphone

WM7132PE Features

* High SNR (65dB)

* Low variation in sensitivity (±1dB tolerance)

* Matched pair with Top Port microphone WM7121P - Matched sensitivity, roll-off, and phase response

* Low current consumption (190µA)

* Analog output

* Bottom Port LGA Package

* 1.5V to 3.7V supply APPLICAT

WM7132PE General Description

The WM7132P is a low-profile silicon analog microphone. It offers high Signal to Noise Ratio (SNR) and low power consumption and is suited to a wide variety of consumer applications. The WM7132P incorporates Cirrus proprietary CMOS/MEMS membrane technology, offering high reliability and high perform.

WM7132PE Datasheet (696.50 KB)

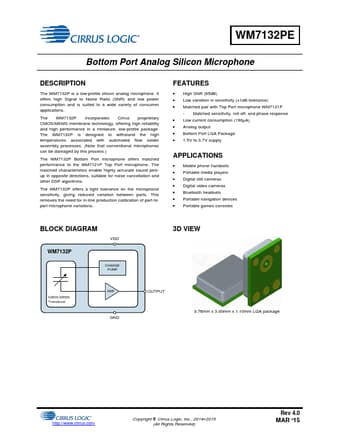

Preview of WM7132PE PDF

Datasheet Details

Part number:

WM7132PE

Manufacturer:

Cirrus Logic

File Size:

696.50 KB

Description:

Bottom port analog silicon microphone.
