WM7236E Datasheet, Microphone, Cirrus Logic

WM7236E Features

  • Microphone
  • High SNR (63dB)
  • Low variation in sensitivity (±1dB tolerance)
  • Low current consumption - 10μA (Sleep) - 290μA (Voice mode) - 980μA (Hi-Fi Record mode)

PDF File Details

Part number:

WM7236E

Manufacturer:

Cirrus Logic

File Size:

687.29kb

Download:

📄 Datasheet

Description:

Low power bottom port digital silicon microphone. The WM7236 is a low-profile digital silicon microphone, optimised for use with low-power ‘Always-on’ voice control applications, such

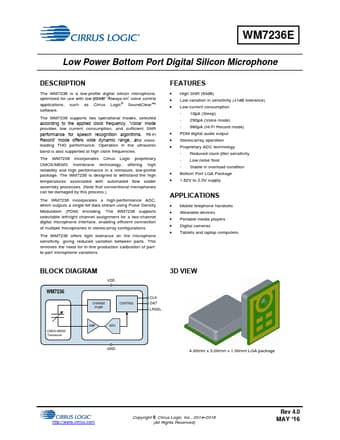

Datasheet Preview: WM7236E 📥 Download PDF (687.29kb)
Page 2 of WM7236E Page 3 of WM7236E

WM7236E Application

  • Applications such as Cirrus Logic® SoundClear™ software. The WM7236 supports two operational modes, selected according to the applied clock frequen
