WM7230E Datasheet - Cirrus Logic

Bottom Port Digital Silicon Microphone

WM7230E Features

* High SNR (61dB)

* Low variation in sensitivity (±1dB tolerance)

* Low current consumption - 2μA (Sleep) - 735μA (Normal operation)

* PDM digital audio output

* Stereo/array operation

* Proprietary ADC technology - Reduced clock jitter sensitivity - Low noise floor - Stable

WM7230E General Description

The WM7230 is a low-profile silicon digital microphone. It offers high Signal to Noise Ratio (SNR) and low power consumption and is suited to a wide variety of consumer applications. The WM7230 incorporates Cirrus Logic proprietary CMOS/MEMS membrane technology, offering high reliability and high pe.

WM7230E Datasheet (852.05 KB)

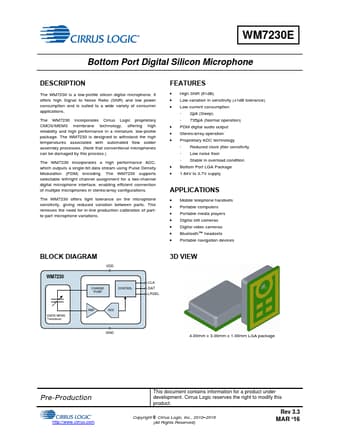

WM7230E Datasheet Preview — Preview of WM7230E PDF

Datasheet Details

Part number:

WM7230E

Manufacturer:

Cirrus Logic

File Size:

852.05 KB

Description:

Bottom port digital silicon microphone.
