ITC117P

Integrated Telecom Circuits

ITC117P Features

* Small 16 Pin SOIC Package (PCMCIA Compatible)

* Board Space and Cost Savings

* 2mW Hookswitch Drive Power (Logic Compatible)

* No Moving Parts

* 3750VRMS Input/Output Isolation

* FCC Compatible Part 68

* Full-Wave Bridge Rectifier

* D

ITC117P General Description

The Integrated Telecom Circuit combines a 1-Form-A solid state relay, bridge rectifier, Darlington transistor and optocoupler into one 16 pin SOIC package, consolidating designs and reducing component count in telecom applications. The ITC117’s optocoupler provides for full wave detection of ring si.

ITC117P Datasheet (421.00 KB)

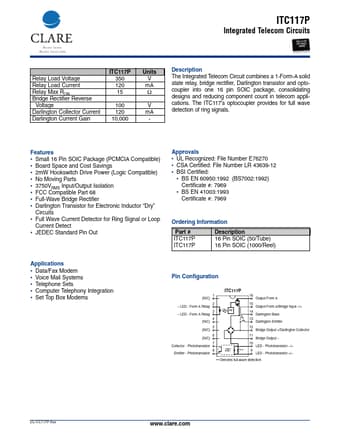

Preview of ITC117P PDF

Datasheet Details

Part number:

ITC117P

Manufacturer:

Clare Inc.

File Size:

421.00 KB

Description:

Integrated telecom circuits.
ITC117P Integrated Telecom Circuits Relay Load Voltage Relay Load Current Relay Max RON Bridge Rectifier Reverse Voltage Darlington Collector Current.
