ITC135P

Integrated Telecom Circuits

Clare Inc.

ITC135P Features

* Small 16 Pin SOIC Package (PCMCIA Compatible)

* Board Space and Cost Savings

* 2mW Hookswitch Drive Power (Logic Compatible)

* No Moving Parts

* 3750VRMS Input/Output Isolation

* FCC Compatible Part 68

* Full-Wave Bridge Rectifier

* D

ITC135P General Description

The Integrated Telecom Circuit combines a 1-Form-A solid state relay, bridge rectifier, Darlington transistor, optocoupler and zener diodes into one 16 pin SOIC package, consolidating designs and reducing component count in telecom applications. The ITC135P’s optocoupler provides half wave ring dete.

ITC135P Datasheet (415.44 KB)

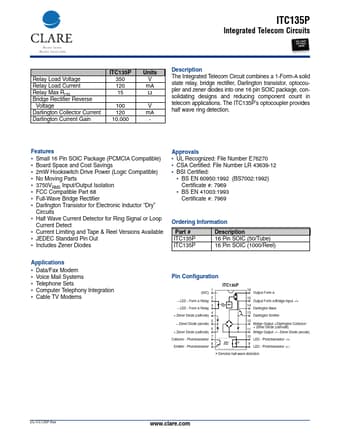

ITC135P Datasheet Preview — Preview of ITC135P PDF

Datasheet Details

Part number:

ITC135P

Manufacturer:

Clare Inc.

File Size:

415.44 KB

Description:

Integrated telecom circuits.
ITC135P Integrated Telecom Circuits Relay Load Voltage Relay Load Current Relay Max RON Bridge Rectifier Reverse Voltage Darlington Collector Current.
