LCB111 - Single Pole OptoMOS Relay

LCB111 Description

LCB111 Single Pole OptoMOS® Relay Load Voltage Load Current Max RON LCB111 350 120 35 Units V mA Ω .
LCB111 is a 350V, 120mA, 35Ω, 1-Form-B relay. Small 6 Pin DIP Package. Low Drive Power Requ.

LCB111 Features

* high sensitivity. Features
* Small 6 Pin DIP Package
* Low Drive Power Requirements (TTL/CMOS Compatible)
* No Moving Parts
* High Reliability
* Arc-Free With No Snubbing Circuits
* 3750VRMS Input/Output Isolation
* FCC Compatible
* VD

LCB111 Applications

* Telecommunications
* Telecom Switching
* Tip/Ring Circuits
* Modem Switching (Laptop, Notebook, Pocket Size)
* Hookswitch
* Dial Pulsing
* Ground Start
* Ringer Injection
* Instrumentation
* Multiplexers
* Data

📥 Download Datasheet

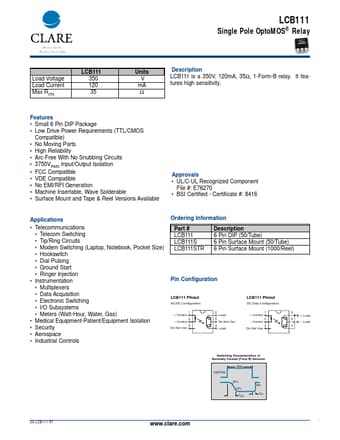

Preview of LCB111 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LCB111
Manufacturer
Clare
File Size
66.00 KB
Datasheet
LCB111_ClareInc..pdf
Description
Single Pole OptoMOS Relay
