LCB126 - Single Pole OptoMOS Relay

LCB126 Description

LCB126 Single Pole OptoMOS® Relay Load Voltage Load Current Max RON LCB126 250 170 15 Units V mA Ω .
LCB126 is a 250V, 170mA, 15Ω 1-Form-B relay. Small 6 Pi.

LCB126 Features

* enhanced peak load current capability and lower on-resistance. Features
* Small 6 Pin DIP Package
* Low Drive Power Requirements (TTL/CMOS Compatible)
* No Moving Parts
* High Reliability
* Arc-Free With No Snubbing Circuits
* 3750VRMS Input/Output Is

LCB126 Applications

* Telecommunications
* Telecom Switching
* Tip/Ring Circuits
* Modem Switching (Laptop, Notebook, Pocket Size)
* Hookswitch
* Dial Pulsing
* Ground Start
* Ringer Injection
* Instrumentation
* Multiplexers
* Data

📥 Download Datasheet

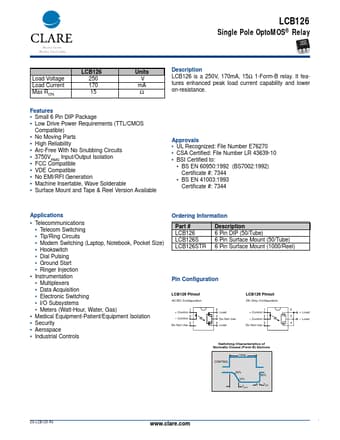

Preview of LCB126 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LCB126
Manufacturer
Clare
File Size
85.00 KB
Datasheet
LCB126_ClareInc..pdf
Description
Single Pole OptoMOS Relay
