LCB110S, LCB110 - Normally Closed OptoMOS Relay

LCB110S Description

INTEGRATED CIRCUITS DIVISION LCB110 350V, 120mA Single-Pole, Normally Closed Relay Parameter Blocking Voltage Load Current On-Resistance (max) Rati.
The LCB110 is a single-pole, normally closed (1-Form-B) relay that uses optically coupled MOSFET technology to provide 3750Vrms of input to output iso.

LCB110S Features

* 3750Vrms Input/Output Isolation
* Low Drive Power Requirements
* FCC Compatible
* VDE Compatible
* No EMI/RFI Generation
* Small 6-Pin Package

LCB110S Applications

* Telecommunications
* Telecom Switching
* Tip/Ring Circuits
* Modem Switching (Laptop, Notebook, Pocket Size)
* Hook Switch
* Dial Pulsing
* Ground Start
* Ringing Injection
* Instrumentation
* Multiplexers
* Da

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LCB110S, LCB110. Please refer to the document for exact specifications by model.

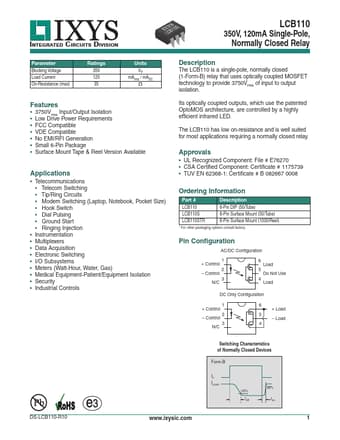

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LCB110S, LCB110
Manufacturer
IXYS
File Size
148.21 KB
Datasheet
LCB110-IXYS.pdf
Description
Normally Closed OptoMOS Relay
Note
This datasheet PDF includes multiple part numbers: LCB110S, LCB110.
Please refer to the document for exact specifications by model.
