LCB710S, LCB710 - Normally Closed Relay

LCB710S Description

INTEGRATED CIRCUITS DIVISION Parameter Blocking Voltage Load Current On-Resistance (max) LED Current to Operate Rating 60 1 0.6 2 Units VP Arms / A.
LCB710 is a single-pole normally closed (1-Form-B) solid state relay that uses optically coupled technology to provide an enhanced 3750Vrms isolation.

LCB710S Features

* 1A Load Current
* 0.6 Max On-Resistance
* 2mA Control Current
* 3750Vrms Input/Output Isolation
* Low Drive Power Requirements (TTL/CMOS Compatible)
* Greater Reliability than Electromechanical Relays
* No EMI/RFI Generation
* Small

LCB710S Applications

* Sensor Circuitry
* Instrumentation
* Multiplexers
* Data Acquisition
* Electronic Switching
* I/O Subsystems
* Meters (gas, oil, electric and water)
* Medical Equipment-Patient/Equipment Isolation
* Security
* Industri

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LCB710S, LCB710. Please refer to the document for exact specifications by model.

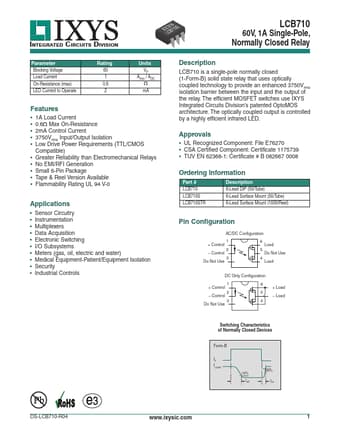

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LCB710S, LCB710
Manufacturer
IXYS
File Size
148.66 KB
Datasheet
LCB710-IXYS.pdf
Description
Normally Closed Relay
Note
This datasheet PDF includes multiple part numbers: LCB710S, LCB710.
Please refer to the document for exact specifications by model.
