AV13-64

Multi-Octave Band Voltage Controlled Attenuators

AV13-64 Features

* ™ Low Insertion Loss ™ Low VSWR ™ High Speed SPECIFICATIONS ™ Stable Attenuation vs Temperature ™ High Damage Power Model Number AV082-64 AV13-64 AV26-64 AV218-64 AV618-64 Freq. Range (GHz) 0.8-2 1-3 2-6 2-18 6-18 Multi-Octave Band Voltage Controlled Attenuators Atten. Range (dB) 64 64 64 64 64

AV13-64 Datasheet (31.17 KB)

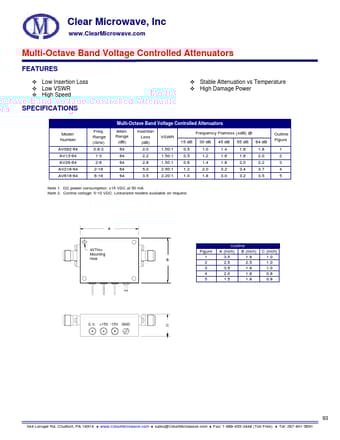

Preview of AV13-64 PDF

Datasheet Details

Part number:

AV13-64

Manufacturer:

Clear Microwave

File Size:

31.17 KB

Description:

Multi-octave band voltage controlled attenuators.
