AV132-315

HIP3 Variable Attenuator for DCS and PCS Base Stations

AV132-315 Features

* 23 dB Attenuation Range

* 1.5 dB Insertion Loss, 1.5 SWR

* 12 V Control Voltage

* 43 dBm IP3

* Small Footprint LGA Package

* Designed for DCS/PCS Base Station Applications Description The AV132-315 is a voltage controlled variable attenuator from Alpha’s series o

AV132-315 General Description

The AV132-315 is a voltage controlled variable attenuator from Alpha’s series of HIP3™ components. It is specifically designed and specified for use as a wide dynamic range low distortion attenuator for DCS and PCS base station applications centered at 1837.5 MHz and 1960 MHz. The AV132-315 employs .

AV132-315 Datasheet (260.59 KB)

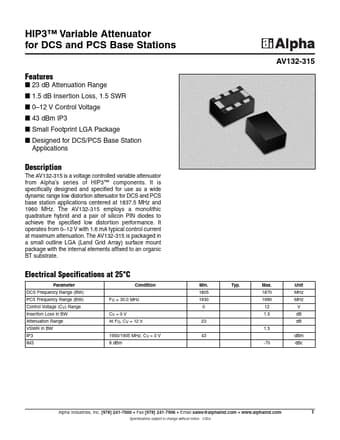

Preview of AV132-315 PDF

Datasheet Details

Part number:

AV132-315

Manufacturer:

Alpha Industries

File Size:

260.59 KB

Description:

Hip3 variable attenuator for dcs and pcs base stations.
