AV133-315 Datasheet, stations equivalent, Alpha Industries

AV133-315 Features

  • Stations
  • 23 dB Attenuation Range
  • 1.5 dB Insertion Loss, 1.5 SWR
  • 0
      –12 V Control Voltage
  • 43 dBm IP3
  • Small Footprint LGA Package

PDF File Details

Part number:

AV133-315

Manufacturer:

Alpha Industries

File Size:

250.71kb

Download:

📄 Datasheet

Description:

Hip3 variable attenuator for umts base stations. The AV133-315 is a voltage controlled variable attenuator from Alpha’s series of HIP3™ components. It is specifically designed and sp

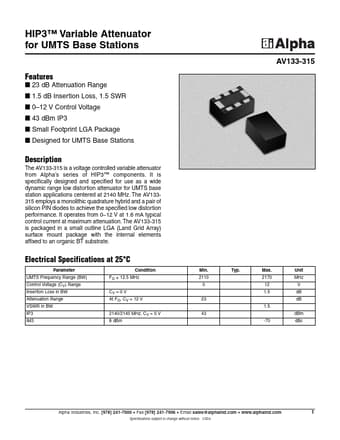

Datasheet Preview: AV133-315 📥 Download PDF (250.71kb)
Page 2 of AV133-315 Page 3 of AV133-315

AV133-315 Application

  • Applications centered at 2140 MHz. The AV133315 employs a monolithic quadrature hybrid and a pair of silicon PIN diodes to achieve the specified low
