DA2304-AL SMT Power Transformers

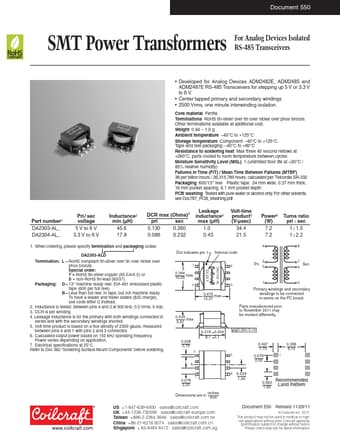

Document 550 SMT Power Transformers ForAnalogDevicesIsolated RS-485 Transceivers Developed for Analog Devices ADM2482E, ADM2485 and ADM2487E RS-485 Transceivers for stepping up 5 V or 3.3 V to 6 V. Center tapped primary and secondary windings 2500 Vrms, one minute interwinding isolation. Core material Ferrite Terminations RoHS tin-silver over tin over nickel over phos bronze. Other terminations available at additional cost. Weight 0.94 1.0 g Ambient .

DA2303-AL-Coilcraft.pdf

DA2304-AL Datasheet Preview — This datasheet PDF includes multiple part numbers: DA2304-AL, DA2303-AL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DA2304-AL, DA2303-AL

Manufacturer:

Coilcraft

File Size:

120.01 KB

Description:

Smt power transformers.

Note:

This datasheet PDF includes multiple part numbers: DA2304-AL, DA2303-AL.
Please refer to the document for exact specifications by model.
