DS5022P - Shielded Power Inductors

Coilcraft

📥 Download Datasheet

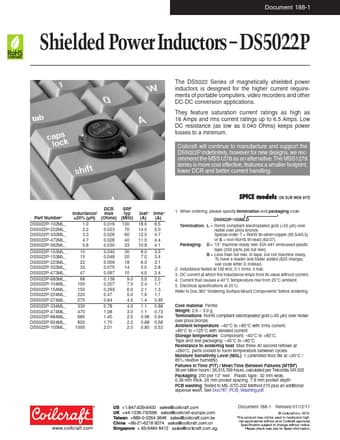

DS5022P Datasheet Preview — Preview of DS5022P PDF

datasheet Preview Page 2

Datasheet Details

Part number: DS5022P
Manufacturer: Coilcraft
File Size: 495.33 KB
Datasheet: DS5022P-Coilcraft.pdf
Description: Shielded Power Inductors

DS5022P Product details

Features

a smaller footprint, lower DCR and better current handling. DCR SRF Inductance2 max typ Isat3 Irms4 Part Number1 ±20% (µH) (Ohms) (MHz) (A) (A) DS5022P-102ML_ DS5022P-222ML_ DS5022P-332ML_ DS5022P-472ML_ DS5022P-562ML_ 1.0 2.2 3.3 4.7 5.6 0.016 130 18.0 6.5 0.023 70 14.0 5.0 0.026 60 12.5 4.7 0.028 40 11.5 4.4 0.030 33 10.8 4.1 DS50.
