DS5001FP

128k Soft Microprocessor

DS5001FP Features

* 8051-Compatible Microprocessor Adapts to Its Task - Accesses up to 128kB of nonvolatile SRAM - In-system programming through on-chip serial port - Can modify its own program or data memory - Accesses memory on a separate byte-wide bus - Performs CRC-16 check of NV RAM memory - Decodes memory a

DS5001FP General Description

The DS5001FP 128k soft microprocessor chip is an 8051-compatible microprocessor based on NV RAM technology and designed for systems that need large quantities of nonvolatile memory. It provides full compatibility with the 8051 instruction set, timers, serial port, and parallel I/O ports. By using NV.

DS5001FP Datasheet (934.17 KB)

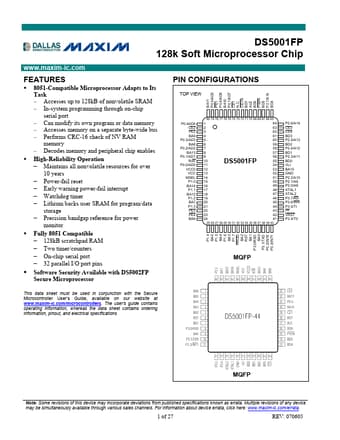

Preview of DS5001FP PDF

Datasheet Details

Part number:

DS5001FP

Manufacturer:

Maxim Integrated ↗

File Size:

934.17 KB

Description:

128k soft microprocessor.
