DS5000 - Soft Microcontroller Module

Maxim Integrated

📥 Download Datasheet

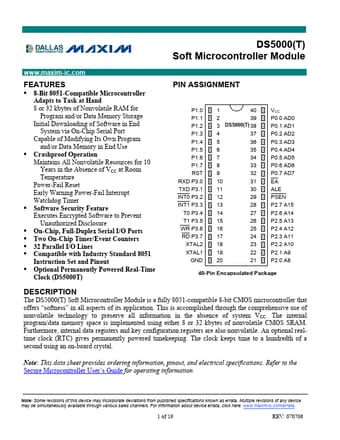

DS5000 Datasheet Preview — Preview of DS5000 PDF

Datasheet Details

Part number: DS5000
Manufacturer: Maxim Integrated ↗
File Size: 372.82 KB
Datasheet: DS5000-MaximIntegrated.pdf
Description: Soft Microcontroller Module

DS5000 Product details

Description

The DS5000(T) Soft Microcontroller Module is a fully 8051-compatible 8-bit CMOS microcontroller that offers “softness” in all aspects of its application.

Features

8-Bit 8051-Compatible Microcontroller Adapts to Task at Hand 8 or 32 kbytes of Nonvolatile RAM for Program and/or Data Memory Storage Initial Downloading of Software in End System via On-Chip Serial Port Capable of Modifying Its Own Program and/or Data Memory in End Use Crashproof Operation Maintains All Nonvolatile Resources for 10 Years in the Absence of VCC at Room Temperature Power-Fail Reset Early Warning Power-Fail Interrupt Watchdog Timer Software Security Feature Executes Encrypted Softw.
