DS50 Datasheet - LUMILEDS

DS50 power light source LUXEON Flash Module

Technical Datasheet DS50 www.datasheet4u.com power light source LUXEON Flash Module ® Introduction LUXEON® Flash is a family of ultra compact light sources specifically designed and tested for use as a camera flash in space constrained, portable digital imaging applications. The LUXEON Flash products are based on proven LUXEON technology and provide the highest levels of light output available for a solid state light source. The uniquely bright source density characteristics of the LUXEON Fla.

DS50 Features

* ΠHighest illuminance per LED on the market ΠVery small emitter size ΠIntegrated lens for optimal radiation patterns for Camera Flash ΠIntegrated Thermal Solution ΠRear or Side Mountable ΠSurface Mountable Benefits ΠHigh lux and long distances (3m) ΠEnables higher resolution pictures in dark

DS50 Datasheet (638.90 KB)

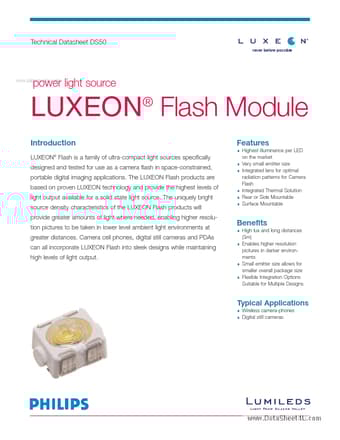

Preview of DS50 PDF
DS50 Datasheet Preview Page 2 DS50 Datasheet Preview Page 3

Datasheet Details

Part number:

DS50

Manufacturer:

LUMILEDS

File Size:

638.90 KB

Description:

Power light source luxeon flash module.
