HP1-0076L, HP1-1400L Datasheet - Coilcraft

HP1-0076L Hexa-Path Magnetics

Document 613-1 Hexa-Path Magnetics HP1, HPH1 HP2, HPH2 HP3, HPH3 HP4, HPH4 HP5, HPH5 HP6, HPH6 Six 1 : 1 isolated windings that can be connected in series or parallel Tightly coupled windings 500 Vrms, one minute isolation between each winding Power range: 5 50 Watts as inductor and flyback transformer; up to 150 Watts as forward transformer Frequency range up to 1 MHz UL1446 Class F (155°C) Insulation System (UL F.

HP1-1400L-Coilcraft.pdf

This datasheet PDF includes multiple part numbers: HP1-0076L, HP1-1400L. Please refer to the document for exact specifications by model.

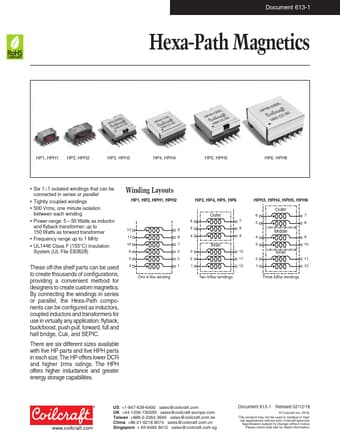

HP1-0076L Datasheet Preview Page 2 HP1-0076L Datasheet Preview Page 3

Datasheet Details

Part number:

HP1-0076L, HP1-1400L

Manufacturer:

Coilcraft

File Size:

393.11 KB

Description:

Hexa-path magnetics.

Note:

This datasheet PDF includes multiple part numbers: HP1-0076L, HP1-1400L.
Please refer to the document for exact specifications by model.
