HP1-0190L Hexa-Path Magnetics

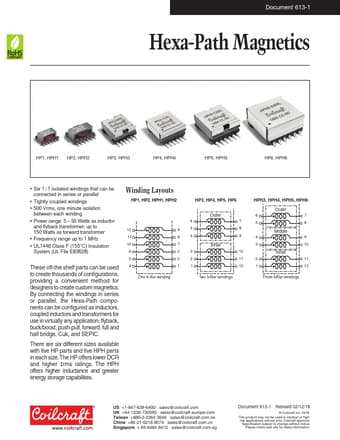

Document 613-1 Hexa-Path Magnetics HP1, HPH1 HP2, HPH2 HP3, HPH3 HP4, HPH4 HP5, HPH5 HP6, HPH6 Six 1 : 1 isolated windings that can be connected in series or parallel Tightly coupled windings 500 Vrms, one minute isolation between each winding Power range: 5 50 Watts as inductor and flyback transformer; up to 150 Watts as forward transformer Frequency range up to 1 MHz UL1446 Class F (155°C) Insulation System (UL F.
