HP12Q60RS

Three quadrant triacs

HP12Q60RS Features

* Blocking voltage to 600-1000 V

* On-state RMS current to 12 A SYMBOL VDRM I T（R M S） ITSM PARAMETER Repetitive peak off-state voltages HP12Q60RS HP12Q80RS HP12QK0RS RMS on-state current （full sine wave） Non-repetitive peak on-state current (full cycle,Tj initial=25℃) Value 600 800 10

HP12Q60RS General Description

Passivated high commutation triacs in a plastic envelope intended for use in circuits where high static and dynamic dV/dt and high dI/dt can occur. These devices will commutate the full rated ms current at the maximum rated junction temperature without the aid of a snubber. Symbol T2 T1 Simplifi.

HP12Q60RS Datasheet (397.02 KB)

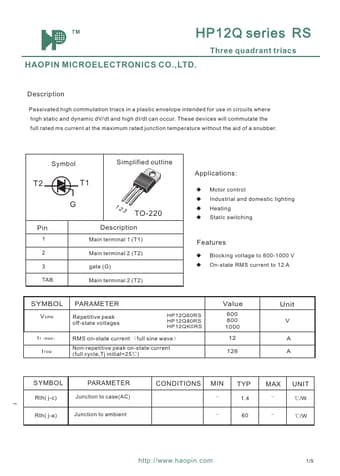

Preview of HP12Q60RS PDF

Datasheet Details

Part number:

HP12Q60RS

Manufacturer:

HAOPIN

File Size:

397.02 KB

Description:

Three quadrant triacs.
