MSD1583-123ME Coupled Inductors

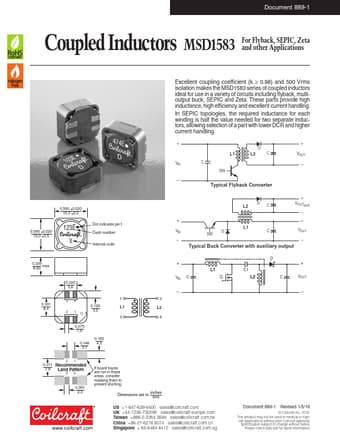

Document 889-1 Coupled Inductors MSD1583 ForFlyback,SEPIC,Zeta and other Applications 0.590 ±0.020 15,0 ±0,5 0.590 ±0.020 15,0 ±0,5 123E X Dot indicates pin1 Dash number Internal code Excellent coupling coefficient (k ≥ 0.98) and 500 Vrms isolation makes the MSD1583 series of coupled inductors ideal for use in a variety of circuits including flyback, multioutput buck, SEPIC and Zeta. These parts provide high inductance, high efficiency and excellent current handling. In SEPIC topologies, th.
