MSD1583-154KE, MSD1583 Datasheet - Coilcraft

MSD1583-154KE Coupled Inductors

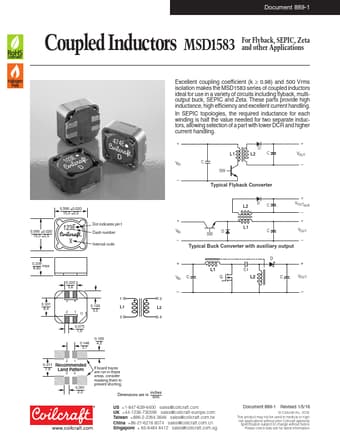

Document 889-1 Coupled Inductors MSD1583 ForFlyback,SEPIC,Zeta and other Applications 0.590 ±0.020 15,0 ±0,5 0.590 ±0.020 15,0 ±0,5 123E X Dot indicates pin1 Dash number Internal code Excellent coupling coefficient (k ≥ 0.98) and 500 Vrms isolation makes the MSD1583 series of coupled inductors ideal for use in a variety of circuits including flyback, multioutput buck, SEPIC and Zeta. These parts provide high inductance, high efficiency and excellent current handling. In SEPIC topologies, th.

MSD1583-Coilcraft.pdf

This datasheet PDF includes multiple part numbers: MSD1583-154KE, MSD1583. Please refer to the document for exact specifications by model.
MSD1583-154KE Datasheet Preview Page 2 MSD1583-154KE Datasheet Preview Page 3

Datasheet Details

Part number:

MSD1583-154KE, MSD1583

Manufacturer:

Coilcraft

File Size:

270.65 KB

Description:

Coupled inductors.

Note:

This datasheet PDF includes multiple part numbers: MSD1583-154KE, MSD1583.
Please refer to the document for exact specifications by model.
