KBU6005-G - Silicon Bridge Rectifiers

KBU6005-G Description

Silicon Bridge Rectifiers KBU6005-G Thru.KBU610-G Reverse Voltage: 50 to 1000V Forward Current: 6.0A RoHS Device .

KBU6005-G Features

* -Surge overload rating - 175 amperes peak. -Ideal for printed circuit board. -Plastic material has U/L flammability classification 94V-0 0.700(17.8) 0.600(16.8) KBU 0.157(4.0)
* 45° 0.935(23.7) 0.895(22.7) 0.15ΦX23L (3.8ΦX5.7L) HOLE TH RU 300 (7 .5) 0.780(19.8) 0.740(18.8) Mechanical Data -Case

📥 Download Datasheet

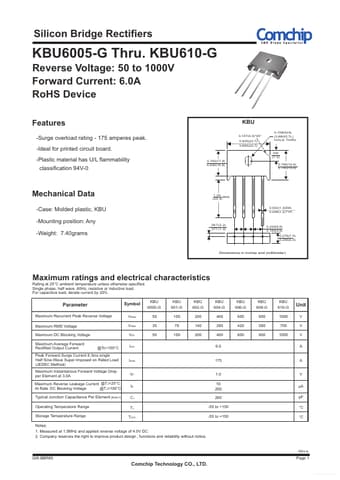

Preview of KBU6005-G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KBU6005-G
Manufacturer
Comchip
File Size
96.33 KB
Datasheet
KBU6005-G_Comchip.pdf
Description
Silicon Bridge Rectifiers
