MBR60100PT-G, MBR6050PT-G - (MBR6050PT-G - MBR60100PT-G) Schottky Barrier Rectifier

MBR60100PT-G Description

Schottky Barrier Rectifier MBR6050PT-G Thru.MBR60100PT-G Reverse Voltage: 50 to 100V Forward Current: 60.0A RoHS Device .

MBR60100PT-G Features

* -Metal of silicon rectifier, majority carrier conduction. -Low power loss, high efficiency. -High current capability, low forward voltage drop. -Guardring for overvoltage protection. -High surge capacity. -For use in low voltage, high frequency inverters, free wheeling,and polarity protection applic

MBR60100PT-G Applications

* 0.646(16.40) 0.626(15.90) 0.244(6.20) 0.224(5.70) 0.085(2.16) 0.075(1.90) TO-3P 0.134(3.40) 0.114(2.90) 0.203(5.16) 0.193(4.90) 0.091(2.30) 0.078(1.97) 0.858(21.80) 0.819(20.80) Mechanical Data -Epoxy: UL 94-V0 rate flame retardant. -Case: JEDEC TO-3P/TO-247AD, molded plastic body -Polarity: As

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR60100PT-G, MBR6050PT-G. Please refer to the document for exact specifications by model.

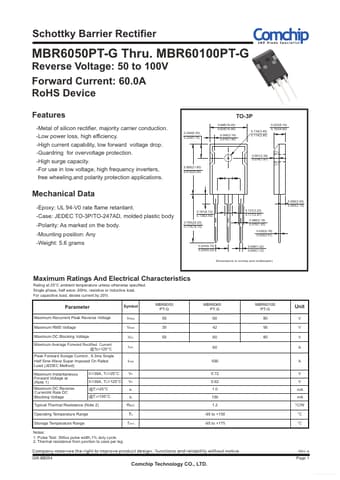

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR60100PT-G, MBR6050PT-G
Manufacturer
Comchip
File Size
93.27 KB
Datasheet
MBR6050PT-G_Comchip.pdf
Description
(MBR6050PT-G - MBR60100PT-G) Schottky Barrier Rectifier
Note
This datasheet PDF includes multiple part numbers: MBR60100PT-G, MBR6050PT-G.
Please refer to the document for exact specifications by model.
