CDLL3156 TEMPERATURE COMPENSATED ZENER REFERENCE DIODES

1N3154UR-1 THRU 1N3157UR-1 AVAILABLE IN JAN, JANTX, JANTXV AND JANS PER MIL-PRF-19500/158 TEMPERATURE COMPENSATED ZENER REFERENCE DIODES LEADLESS PACKAGE FOR SURFACE MOUNT 8.4 VOLT NOMINAL ZENER VOLTAGE METALLURGICALLY BONDED, DOUBLE PLUG CONSTRUCTION 1N3154UR-1 thru 1N3157UR-1 and CDLL3154 thru CDLL3157A MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C DC Power Dissipation: 500mW @ +50°C Power Deratin.

CDLL3156 Datasheet (98.06 KB)

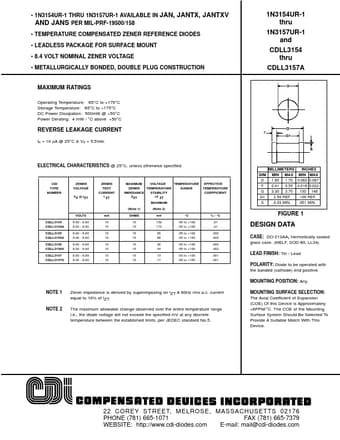

CDLL3156 Datasheet Preview — Preview of CDLL3156 PDF

Datasheet Details

Part number:

CDLL3156

Manufacturer:

Compensated Deuices Incorporated

File Size:

98.06 KB

Description:

Temperature compensated zener reference diodes.
