CDLL3157A Datasheet - Microsemi Corporation

CDLL3157A TEMPERATURE COMPENSATED ZENER REFERENCE DIODES

1N3154UR-1 THRU 1N3157UR-1 AVAILABLE IN AND JANS PER MIL-PRF-19500/158 JAN, JANTX, JANTXV TEMPERATURE COMPENSATED ZENER REFERENCE DIODES LEADLESS PACKAGE FOR SURFACE MOUNT 8.4 VOLT NOMINAL ZENER VOLTAGE METALLURGICALLY BONDED, DOUBLE PLUG CONSTRUCTION 1N3154UR-1 thru 1N3157UR-1 and CDLL3154 thru CDLL3157A MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C DC Power Dissipation: 500mW @ +50°C Power Derat.

CDLL3157A Datasheet (111.66 KB)

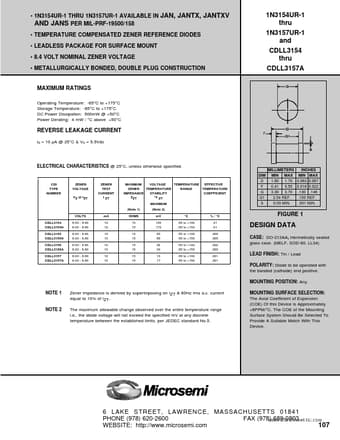

CDLL3157A Datasheet Preview — Preview of CDLL3157A PDF

Datasheet Details

Part number:

CDLL3157A

Manufacturer:

Microsemi ↗ Corporation

File Size:

111.66 KB

Description:

Temperature compensated zener reference diodes.
