CDLL3155 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES

📥 Download Datasheet

Datasheet preview – CDLL3155

Datasheet Details

Part number CDLL3155
Manufacturer Compensated Deuices Incorporated
File Size 98.06 KB
Description TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
Datasheet download datasheet CDLL3155 Datasheet
Additional preview pages of the CDLL3155 datasheet.

📁 Similar Datasheet

  • CDLL3155 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES (Microsemi Corporation)
  • CDLL3155A - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES (Microsemi Corporation)
  • CDLL3154 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES (Microsemi Corporation)
  • CDLL3154A - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES (Microsemi Corporation)
  • CDLL3156 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES (Microsemi Corporation)
  • CDLL3156A - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES (Microsemi Corporation)
  • CDLL3157 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES (Microsemi Corporation)
  • CDLL3157A - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES (Microsemi Corporation)
  • CDLL3600 - SWITCHING DIODE (Microsemi Corporation)
  • CDLL4099-1 - 500mW Metallurgically Bonded Glass Surface Mount Zener Diodes (Microsemi)
Other Datasheets by Compensated Deuices Incorporated
  • CDLL3155A - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
  • CDLL3155UR-1 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
  • CDLL3154 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
  • CDLL3154A - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
  • CDLL3154UR-1 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
  • CDLL3156 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
  • CDLL3156A - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
  • CDLL3156A - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES

Full PDF Text Transcription

Click to expand full text

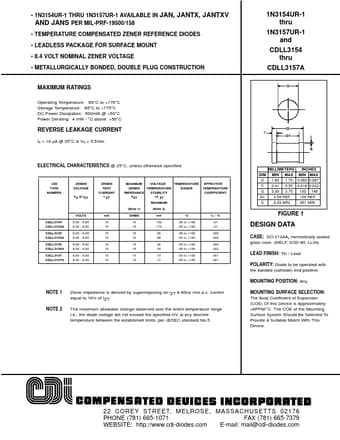

• 1N3154UR-1 THRU 1N3157UR-1 AVAILABLE IN JAN, JANTX, JANTXV AND JANS PER MIL-PRF-19500/158 • TEMPERATURE COMPENSATED ZENER REFERENCE DIODES • LEADLESS PACKAGE FOR SURFACE MOUNT • 8.4 VOLT NOMINAL ZENER VOLTAGE • METALLURGICALLY BONDED, DOUBLE PLUG CONSTRUCTION 1N3154UR-1 thru 1N3157UR-1 and CDLL3154 thru CDLL3157A MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C DC Power Dissipation: 500mW @ +50°C Power Derating: 4 mW / °C above +50°C REVERSE LEAKAGE CURRENT lR = 10 µA @ 25°C & VR = 5.5Vdc ELECTRICAL CHARACTERISTICS @ 25°C, unless otherwise specified.
