CDLL3155UR-1 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES

📥 Download Datasheet

Datasheet preview – CDLL3155UR-1

Datasheet Details

Part number CDLL3155UR-1
Manufacturer Compensated Deuices Incorporated
File Size 98.06 KB
Description TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
Datasheet download datasheet CDLL3155UR-1 Datasheet
Additional preview pages of the CDLL3155UR-1 datasheet.

📁 Similar Datasheet

  • CDLL3155 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES (Microsemi Corporation)
  • CDLL3155A - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES (Microsemi Corporation)
  • CDLL3154 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES (Microsemi Corporation)
  • CDLL3154A - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES (Microsemi Corporation)
  • CDLL3156 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES (Microsemi Corporation)
  • CDLL3156A - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES (Microsemi Corporation)
  • CDLL3157 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES (Microsemi Corporation)
  • CDLL3157A - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES (Microsemi Corporation)
  • CDLL3600 - SWITCHING DIODE (Microsemi Corporation)
  • CDLL4099-1 - 500mW Metallurgically Bonded Glass Surface Mount Zener Diodes (Microsemi)
Other Datasheets by Compensated Deuices Incorporated
  • CDLL3155 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
  • CDLL3155A - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
  • CDLL3154 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
  • CDLL3154A - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
  • CDLL3154UR-1 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
  • CDLL3156 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
  • CDLL3156A - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
  • CDLL3156A - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES

Full PDF Text Transcription

Click to expand full text

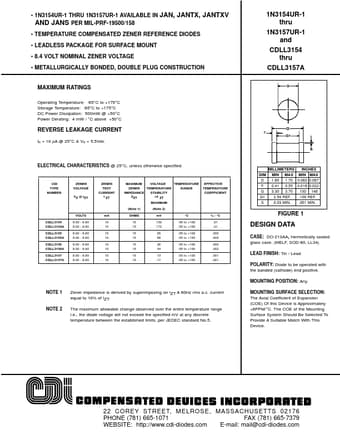

• 1N3154UR-1 THRU 1N3157UR-1 AVAILABLE IN JAN, JANTX, JANTXV AND JANS PER MIL-PRF-19500/158 • TEMPERATURE COMPENSATED ZENER REFERENCE DIODES • LEADLESS PACKAGE FOR SURFACE MOUNT • 8.4 VOLT NOMINAL ZENER VOLTAGE • METALLURGICALLY BONDED, DOUBLE PLUG CONSTRUCTION 1N3154UR-1 thru 1N3157UR-1 and CDLL3154 thru CDLL3157A MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C DC Power Dissipation: 500mW @ +50°C Power Derating: 4 mW / °C above +50°C REVERSE LEAKAGE CURRENT lR = 10 µA @ 25°C & VR = 5.5Vdc ELECTRICAL CHARACTERISTICS @ 25°C, unless otherwise specified.
