BDX62C, BDX62 - PNP SILICON DARLINGTONS

BDX62C Description

BDX62 * A * B * C PNP SILICON DARLINGTON POWER TRANSISTOR The BDX62, BDX62A, BDX62B and BDX62C are mounted in TO-3 metal packa.

BDX62C Applications

* The complementary NPN are BDX63, BDX63A, BDX63B, BDX63C. Compliance to RoHS. ABSOLUTE MAXIMUM RATINGS Symbol Ratings BDX62 BDX62A BDX62B BDX62C BDX62 BDX62A BDX62B BDX62C Value -60 -80 -100 -120 -60 -80 -100 -120 -5.0 -8 -12 -0.15 90 -55 to +200 Unit VCEO Collector-Emitter Voltage V www. Da

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BDX62C, BDX62. Please refer to the document for exact specifications by model.

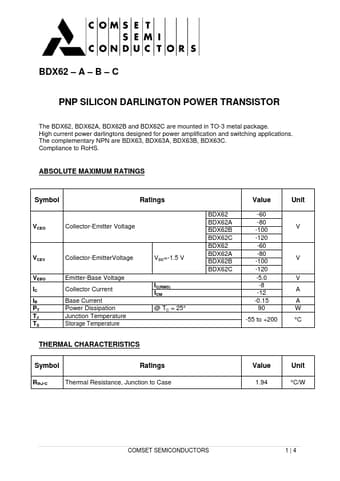

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BDX62C, BDX62
Manufacturer
Comset Semiconductors
File Size
134.30 KB
Datasheet
BDX62_ComsetSemiconductors.pdf
Description
PNP SILICON DARLINGTONS
Note
This datasheet PDF includes multiple part numbers: BDX62C, BDX62.
Please refer to the document for exact specifications by model.
