CX28332, CX28331 Single/Dual/Triple E3/DS3/STS-1 Line Interface Unit

Conexant Systems

Description

Advance Information This document contains information on a product under development.The parametric information contains target parameters that are .
at any time, without notice.

📥 Download Datasheet

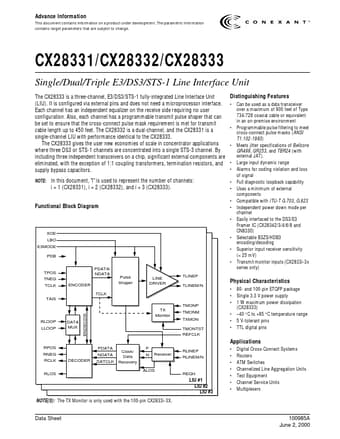

CX28332 Datasheet Preview — This datasheet PDF includes multiple part numbers: CX28332, CX28331. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: CX28332, CX28331
Manufacturer: Conexant Systems
File Size: 562.12 KB
Datasheet: CX28331_ConexantSystems.pdf
Description: Single/Dual/Triple E3/DS3/STS-1 Line Interface Unit
Note: This datasheet PDF includes multiple part numbers: CX28332, CX28331.
Please refer to the document for exact specifications by model.

Features

* Can be used as a data transceiver over a maximum of 900 feet of Type 734/728 coaxial cable or equivalent in an on-premise environment Programmable pulse filtering to meet cross-connect pulse masks (ANSI T1.102-1993) Meets jitter specifications of Bellcore GR499, GR253, and TBR24 (with exte

Applications

* where three DS3 or STS-1 channels are concentrated into a single STS-3 channel. By including three independent transceivers on a chip, significant external components are eliminated, with the exception of 1:1 coupling transformers, termination resistors, and supply bypass capacitors. NOTE: Distingu
