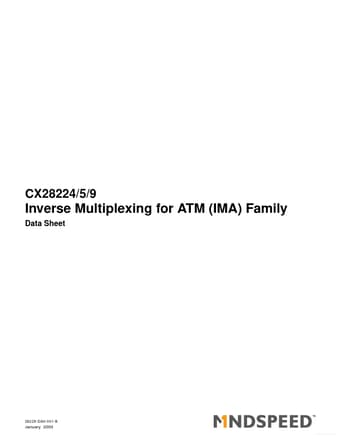

CX28225, CX28224 - Inverse Multiplexing

Datasheet Details

Part number	CX28225, CX28224
Manufacturer	Mindspeed
File Size	3.29 MB
Description	Inverse Multiplexing
Datasheet	CX28224-Mindspeed.pdf
Note	This datasheet PDF includes multiple part numbers: CX28225, CX28224. Please refer to the document for exact specifications by model.

Preliminary A version.

IMA solution for up to 32 ports. All devices include a Transmission Convergence ! Complete IMA solution in a single package block to perform cell delineation, on-board RAM to meet ATM forum requirements " 2 port, CX28224, 17mm BGA " 4 port, CX28225, 17mm BGA for differential delay compensation and a dual mode (UTOPIA or Serial) PHY layer " 8/32 port, CX28229, 17mm BGA interface. Source code for all required software functions is available from Mindspeed. Since all processing intensive functions.
