CX28331 Datasheet - Conexant

CX28331, Single/Dual/Triple E3/DS3/STS-1 Line Interface Unit

Advance Information This document contains information on a product under development.The parametric information contains target parameters that are .
at any time, without notice.

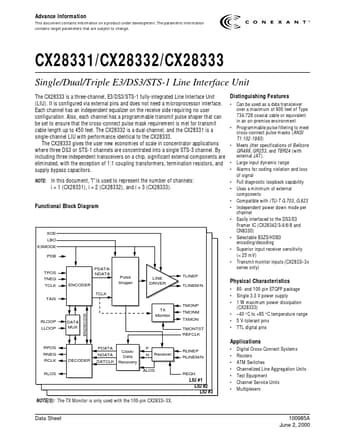

datasheet Preview Page 1 from Datasheet4u.com

CX28331_Conexant.pdf

CX28331 Datasheet Preview — Preview of CX28331 PDF

Datasheet Details

Part number:

CX28331

Manufacturer:

Conexant

File Size:

562.12 KB

Description:

Single/Dual/Triple E3/DS3/STS-1 Line Interface Unit

Features

* Can be used as a data transceiver over a maximum of 900 feet of Type 734/728 coaxial cable or equivalent in an on-premise environment Programmable pulse filtering to meet cross-connect pulse masks (ANSI T1.102-1993) Meets jitter specifications of Bellcore GR499, GR253, and TBR24 (with exte

Applications

* where three DS3 or STS-1 channels are concentrated into a single STS-3 channel. By including three independent transceivers on a chip, significant external components are eliminated, with the exception of 1:1 coupling transformers, termination resistors, and supply bypass capacitors. NOTE: Distingu
