CX28394 Datasheet - Conexant

CX28394 - Quad/x16/Octal?T1/E1/J1 Framers

at any time, without notice.

Conexant makes no commitment to update the information and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to its specifications and product descriptions.

No license, express or implied, by estoppel or otherwise, to

CX28394/28395/28398 Quad/x16/Octal T1/E1/J1 Framers The CX28394/28395/28398 is a family of multiple framers for T1/E1/J1 and Integrated Service Digital Network (ISDN) primary rate interfaces operating at 1.544 Mbps or 2.048 Mbps.

All framers are totally independent, and each combines a sophisticated framing synchronizer and transmit/receive slip buffers.

Operations are controlled through a series of memory-mapped registers accessible via a parallel microprocessor port.

Extensive register

CX28394 Features

* Up to 16 T1/E1/J1 Framers in one package Extensive support of various protocols T1: SF, ESF, SLC®96, T1DM, TTC JT(J1) E1: PCM-30, G.704, G.706, G.732, ISDN primary rate (ETS300 011, INS 500) Extracts and inserts signaling bits Dual HDLC controllers per framer

CX28394_Conexant.pdf

Preview of CX28394 PDF

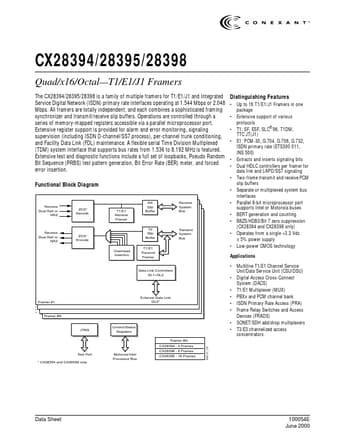

CX28394 Datasheet Preview Page 2 CX28394 Datasheet Preview Page 3
