MSD634 SURFACE MOUNT J LEADED HCMOS CLOCK OSCILLATOR

OPERATING SPECIFICATIONS PARAMETER Frequency Range Total Frequency Tolerance Operating Temperature Range Supply Voltage Supply Current Jitter (BW=10Hz to 20MHz) Jitter (BW=12kHz to 20MHz) SSB Phase Noise at 10Hz offset SSB Phase Noise at 100Hz offset SSB Phase Noise at 1KHz offset SSB Phase Noise a.

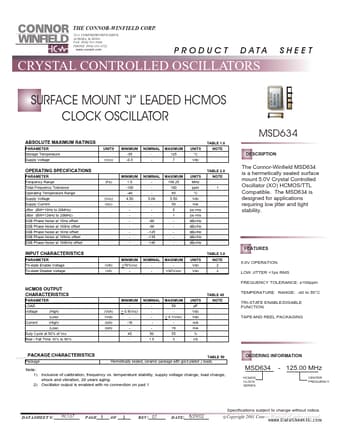

THE CONNOR-WINFIELD CORP. 2111 COMPREHENSIVE DRIVE. AURORA, IL 60505. FAX (630) 581-5040. PHONE (630) 851-4722. www.conwin.com PRODUCT D ATA SHEET CRYSTAL CONTROLLED OSCILLATORS SURFACE MOUNT “J” LEADED HCMOS CLOCK OSCILLATOR ABSOLUTE MAXIMUM RATINGS PARAMETER Storage Temperature Supply Voltage UNITS (Vcc) MINIMUM -55 -0.5 NOMINAL MAXIMUM 125 7 UNITS °C Vdc TABLE 2.0 (Fo) MINIMUM 1.5 -100 -40 4.50 NOMINAL 5.00 -60 -90 -125 -135 -140 MAXIMUM 156.25 100 85 5.50 50 5 1 UNITS MHz ppm °C Vdc mA p.

MSD634 Features

* INPUT CHARACTERISTICS PARAMETER Tri-state Enable Voltage Tri-state Disable Voltage 5.0V OPERATION LOW JITTER 0

MSD634_Connor-Winfield.pdf

MSD634 Datasheet Preview — This datasheet PDF includes multiple part numbers: MSD634, MSD634_Connor. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MSD634, MSD634_Connor

Manufacturer:

Connor-Winfield

File Size:

175.36 KB

Description:

Surface mount j leaded hcmos clock oscillator.

Note:

This datasheet PDF includes multiple part numbers: MSD634, MSD634_Connor.
Please refer to the document for exact specifications by model.
