KPLR1320M10, FIBER OPTIC Receiver Module

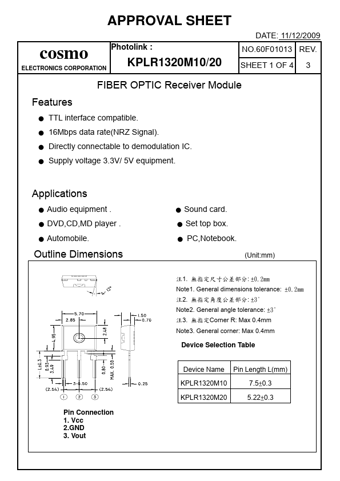

APPROVAL SHEET cosmo Photolink : KPLR1320M10/20 ELECTRONICS CORPORATION DATE: 11/12/2009 NO.60F01013 REV.SHEET 1 OF 4 3 FIBER OPTIC Receiver Module.

datasheet Preview Page 1 from Datasheet4u.com

KPLR1320M10-Cosmo.pdf

KPLR1320M10 Datasheet Preview — Preview of KPLR1320M10 PDF

Datasheet Details

Part number:

KPLR1320M10

Manufacturer:

Cosmo

File Size:

152.30 KB

Description:

FIBER OPTIC Receiver Module

Features

* TTL interface compatible.
* 16Mbps data rate(NRZ Signal).
* Directly connectable to demodulation IC.

Applications

* Audio equipment .
* DVD,CD,MD player .
* Automobile. Outline Dimensions Pin Connection 1. Vcc 2.GND 3. Vout
* Sound card.
* Set top box.
* PC,Notebook. (Unit:mm) 1. : ±0.2mm Note1. General dimensions tolerance: ±0.2mm 2. : ±3° Note2. General angle tolerance: ±3° 3. Corner
