KPLR1320M20, KPLR1320M10 - FIBER OPTIC Receiver Module

KPLR1320M20 Description

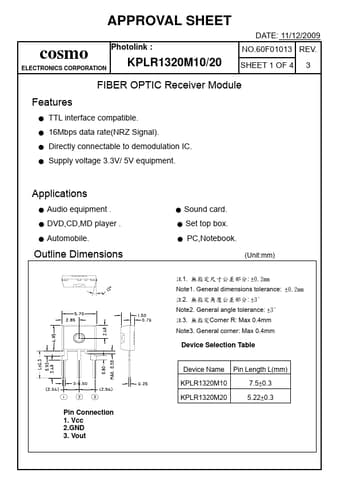

APPROVAL SHEET cosmo Photolink : KPLR1320M10/20 ELECTRONICS CORPORATION DATE: 11/12/2009 NO.60F01013 REV.SHEET 1 OF 4 3 FIBER OPTIC Receiver Module.

KPLR1320M20 Features

* TTL interface compatible.
* 16Mbps data rate(NRZ Signal).
* Directly connectable to demodulation IC.

KPLR1320M20 Applications

* Audio equipment .
* DVD,CD,MD player .
* Automobile. Outline Dimensions Pin Connection 1. Vcc 2.GND 3. Vout
* Sound card.
* Set top box.
* PC,Notebook. (Unit:mm) 1. : ±0.2mm Note1. General dimensions tolerance: ±0.2mm 2. : ±3° Note2. General angle tolerance: ±3° 3. Corner

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KPLR1320M20, KPLR1320M10. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KPLR1320M20, KPLR1320M10
Manufacturer
Cosmo
File Size
152.30 KB
Datasheet
KPLR1320M10-Cosmo.pdf
Description
FIBER OPTIC Receiver Module
Note
This datasheet PDF includes multiple part numbers: KPLR1320M20, KPLR1320M10.
Please refer to the document for exact specifications by model.
