KPLR1320M61, KPLR1320M50 Datasheet - Cosmo

KPLR1320M61, KPLR1320M50, FIBER OPTIC Receiver Module

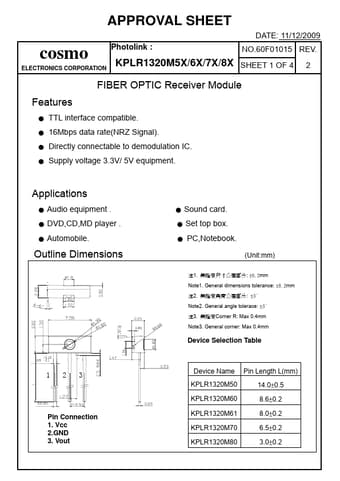

APPROVAL SHEET DATE: 11/12/2009 cosmo Photolink : NO.60F01015 REV.ELECTRONICS CORPORATION KPLR1320M5X/6X/7X/8X SHEET 1 OF 4 2 FIBER OPTIC Receiv.

datasheet Preview Page 1 from Datasheet4u.com

KPLR1320M50-Cosmo.pdf

KPLR1320M61 Datasheet Preview — This datasheet PDF includes multiple part numbers: KPLR1320M61, KPLR1320M50. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KPLR1320M61, KPLR1320M50

Manufacturer:

Cosmo

File Size:

169.20 KB

Description:

FIBER OPTIC Receiver Module

Note:

This datasheet PDF includes multiple part numbers: KPLR1320M61, KPLR1320M50.
Please refer to the document for exact specifications by model.

Features

* TTL interface compatible.
* 16Mbps data rate(NRZ Signal).
* Directly connectable to demodulation IC.

Applications

* Audio equipment .
* DVD,CD,MD player .
* Automobile. Outline Dimensions
* Sound card.
* Set top box.
* PC,Notebook. (Unit:mm) 1. : ±0.2mm Note1. General dimensions tolerance: ±0.2mm 2. : ±3° Note2. General angle tolerace: ±3° 3. Corner R: Max 0.4mm Note3. General corner: M
