KPLR1320M60, KPLR1320M50 - FIBER OPTIC Receiver Module

KPLR1320M60 Description

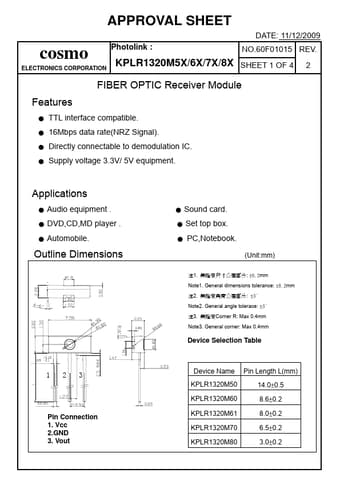

APPROVAL SHEET DATE: 11/12/2009 cosmo Photolink : NO.60F01015 REV.ELECTRONICS CORPORATION KPLR1320M5X/6X/7X/8X SHEET 1 OF 4 2 FIBER OPTIC Receiv.

KPLR1320M60 Features

* TTL interface compatible.
* 16Mbps data rate(NRZ Signal).
* Directly connectable to demodulation IC.

KPLR1320M60 Applications

* Audio equipment .
* DVD,CD,MD player .
* Automobile. Outline Dimensions
* Sound card.
* Set top box.
* PC,Notebook. (Unit:mm) 1. : ±0.2mm Note1. General dimensions tolerance: ±0.2mm 2. : ±3° Note2. General angle tolerace: ±3° 3. Corner R: Max 0.4mm Note3. General corner: M

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KPLR1320M60, KPLR1320M50. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KPLR1320M60, KPLR1320M50
Manufacturer
Cosmo
File Size
169.20 KB
Datasheet
KPLR1320M50-Cosmo.pdf
Description
FIBER OPTIC Receiver Module
Note
This datasheet PDF includes multiple part numbers: KPLR1320M60, KPLR1320M50.
Please refer to the document for exact specifications by model.
